High Voltage 100kWh Solar Battery Storage System for Home | ACE Battery

Battery Storage Systems

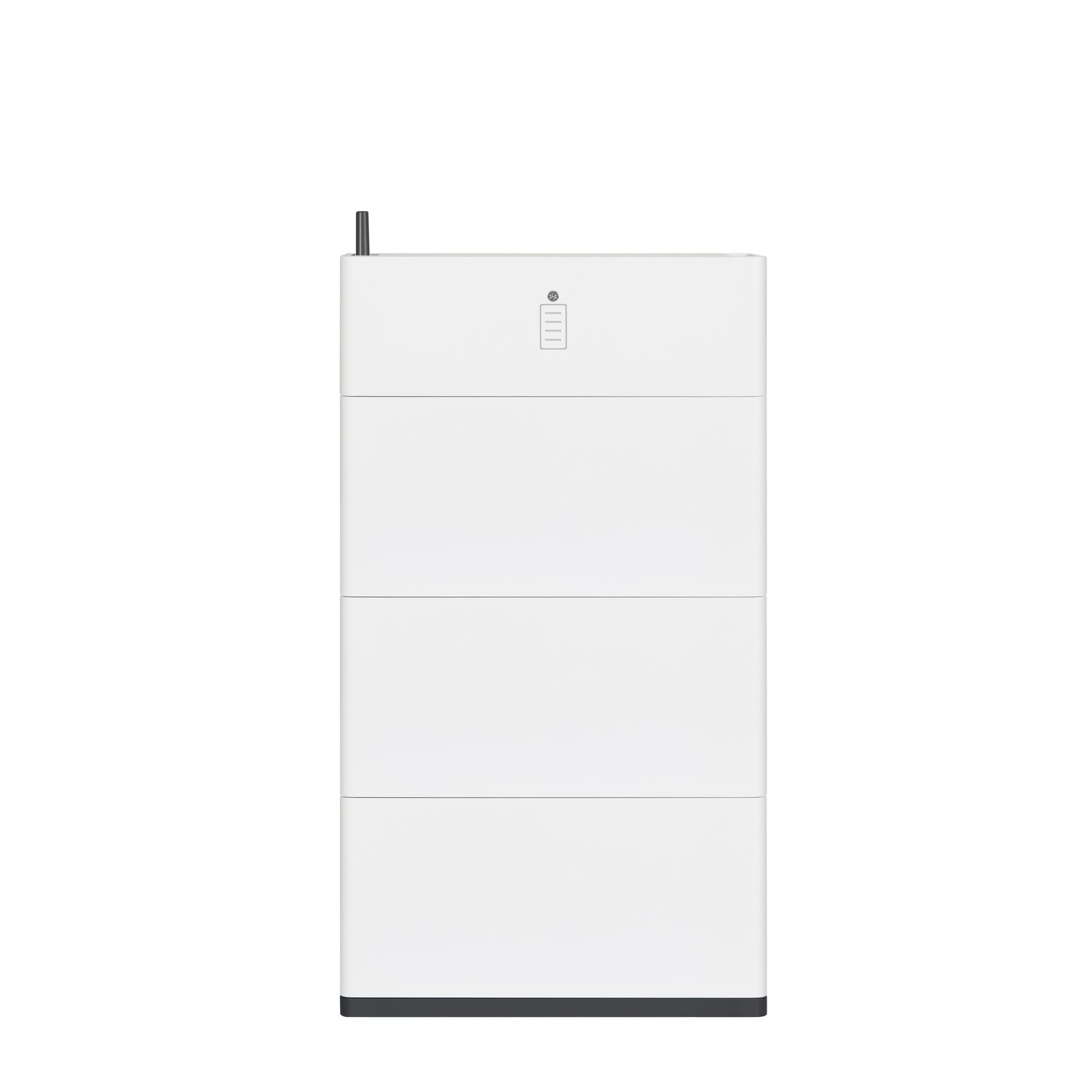

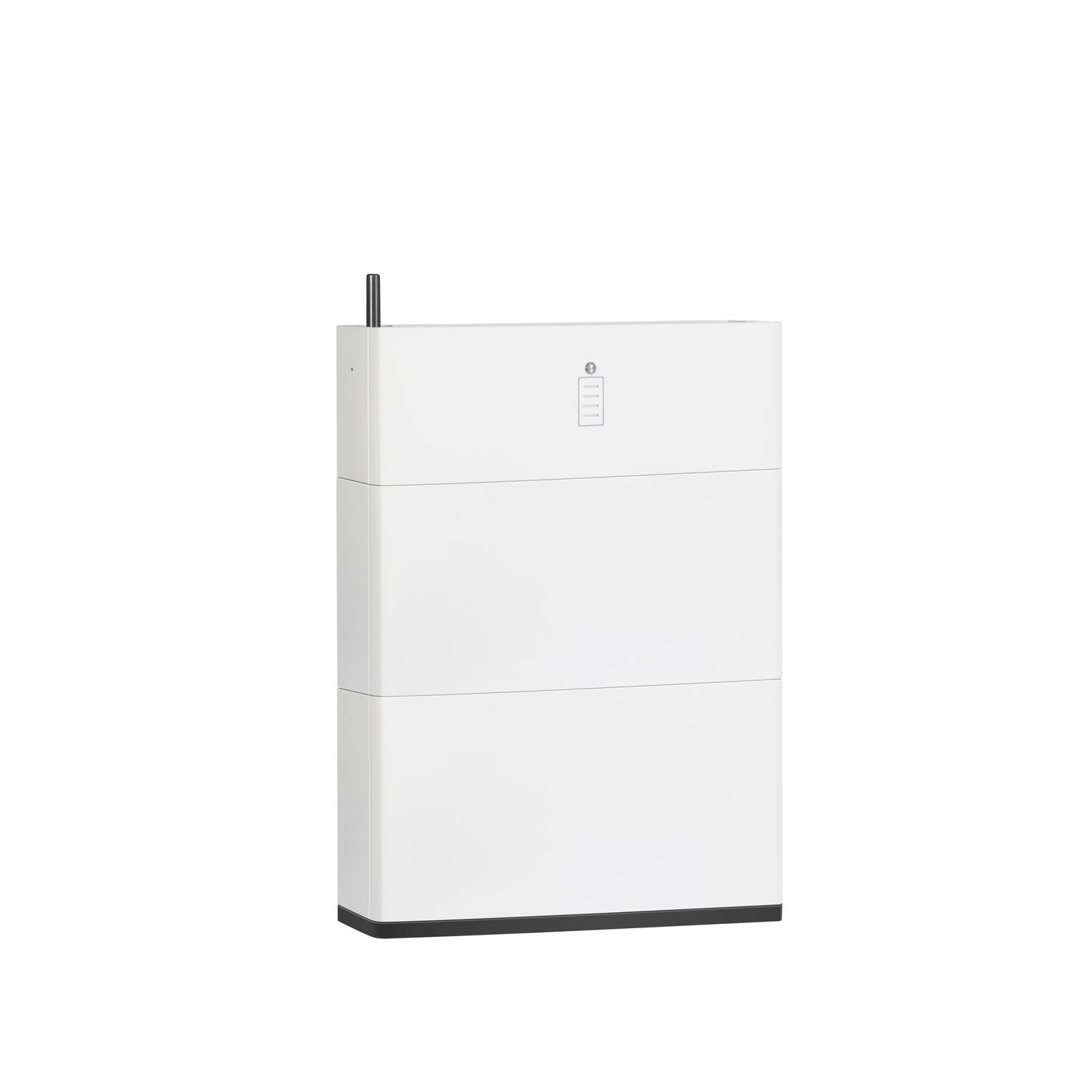

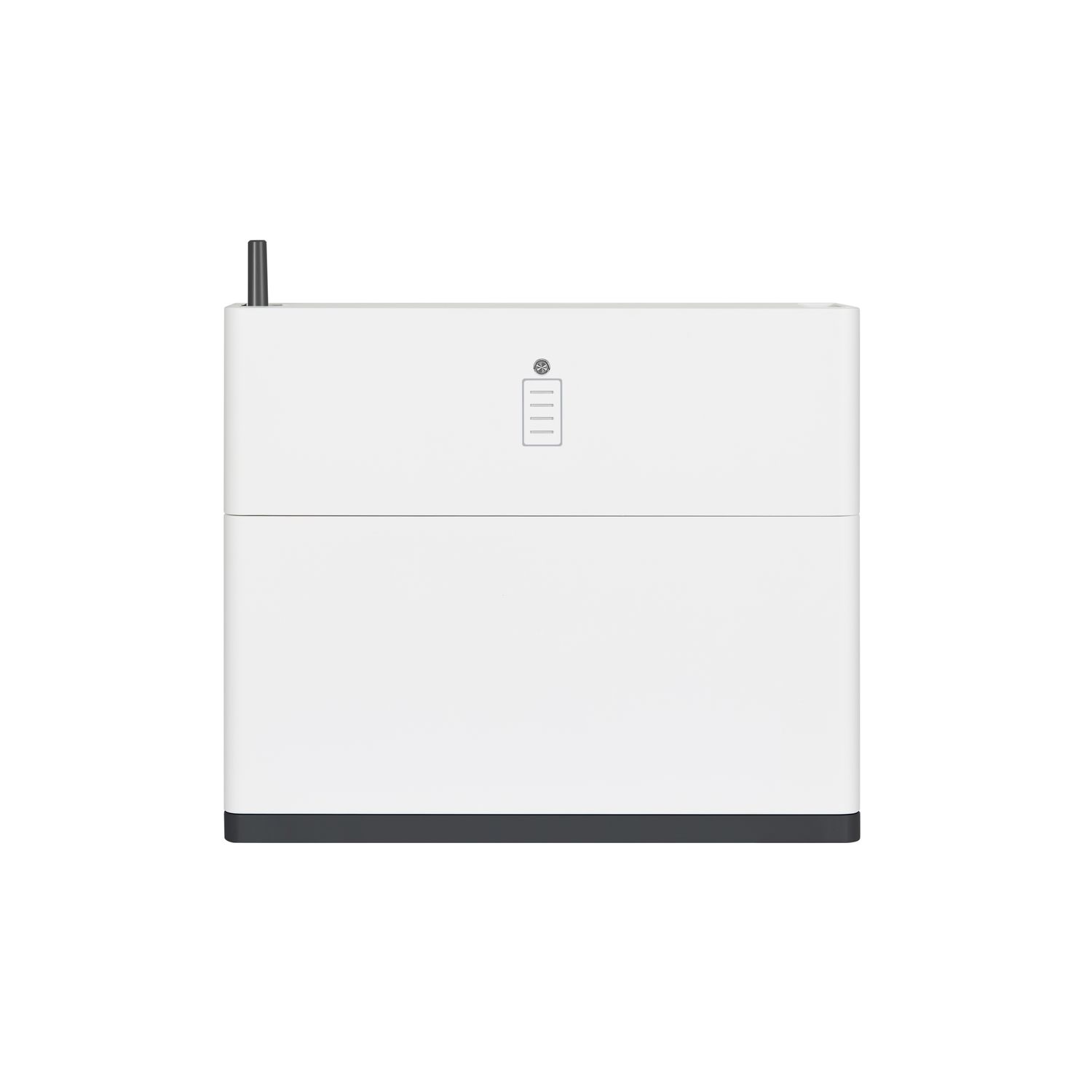

<div class="fr-view sa_b_component_richtext_unique"><div class="fr-view sa_b_component_richtext_unique">At ACE Battery, we offer customized energy storage solutions to meet the unique needs of every customer. Whether you require a specific capacity, wall-mounted design, or a particular configuration, we work closely with you to create the perfect storage solution tailored to your space and energy requirements. The RESS E20 home backup battery is a latest 100 kWh home battery storage solution designed for modern, energy-efficient homes. Equipped with a high voltage battery storage system (max 576V), it ensures efficient power management while minimizing energy loss, making it perfect for large homes, villas, and energy-intensive applications. The E20 features a stackable design, allowing you to combine 2 to 5 battery units with a total energy capacity ranging from 7.6 kWh to 113.6 kWh. This scalable configuration provides flexibility to meet the growing energy needs of your home. With its compact energy storage design, the E20 maximizes your available space while delivering powerful, long-lasting energy storage. <h2>Features</h2><table style="border-collapse: collapse; width: 100%; height: 210px;" border="0"><tbody><tr style="height: 126px;"><td style="width: 30.9384%; height: 126px;">Scalable ConfigurationModular design: One storage cluster can support 2 to 5 battery modules. Energy storage clusters can be expanded in parallel to a max. energy of 113.6kWh.</td><td style="width: 30.9384%; height: 126px;">High SafetySystem design based on LFP batteries, which have greater thermal stability.</td><td style="width: 30.9399%; height: 126px;">Quick InstallationWireless Fast-Plug Stacking design to save installation time and cost.</td></tr><tr style="height: 84px;"><td style="width: 30.9384%; height: 84px;">Long Service LifeBattery cycle life over 7000 at recommended condition.</td><td style="width: 30.9384%; height: 84px;">IP66 RatingIP66 water- and dust-proof, supports both indoor and outdoor installation.</td><td style="width: 30.9399%; height: 84px;">High UsageBattery usable energy up to 95%.</td></tr></tbody></table>&nbsp;<img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjU5NjA3MTg0NDA4MjI3MC9zdGF0aWMtcmVzLzlkMGY1ZjA4MTEzMDk5OTU2MTE3NjAzNy5qcGciLCJlZGl0cyI6eyJyZXNpemUiOnsid2lkdGgiOjE0NDAsImZpdCI6ImNvdmVyIn0sInJvdGF0ZSI6bnVsbH19" style="width: 100%;" class="fr-fic fr-dib"> </div></div>

<div class="fr-view sa_b_component_richtext_unique">App/Web-based MonitoringFull visibility of battery statusReal-time monitoring&nbsp;<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/3cb999a0652547685908699.jpg" alt="ACE high voltage 100kwh home battery system with App monitoring" class="fr-fic fr-dii">&nbsp;Smart Energy ManagementAccurate SOC &amp; SOH estimationEfficient battery cell balancing&nbsp;<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/470ea978652547744628953.jpg" alt="ACE high voltage 100kwh home battery system with smart energy management" class="fr-fic fr-dii"></div>

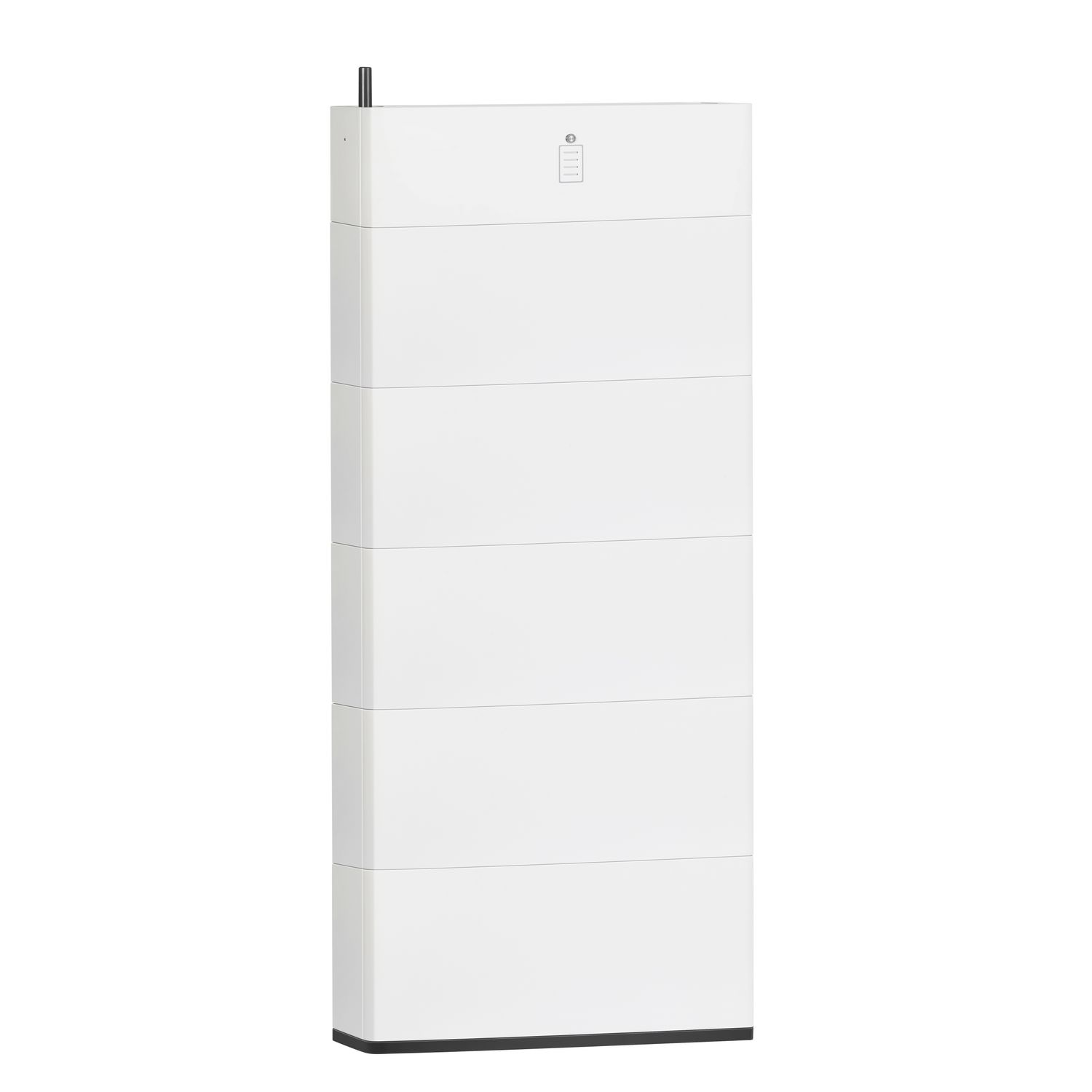

<div class="fr-view sa_b_component_richtext_unique">Stackable Home Energy Storage System&nbsp;<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/1909838b713438494361036.png" alt="ACE high voltage 100kwh home battery system with stackable and compact design" class="fr-fic fr-dii">&nbsp;&nbsp;How Solar Batteries WorkBattery storage works by storing the excess solar energy from the PV system for nighttime usage. Another salient feature of storage systems is that it protects your house from power outages and helps reduce dependence on grid supply.&nbsp;<ul class=" list-paddingleft-2"><li style="text-align: left; line-height: 1.5;">Solar Panels convert sunlight to DC electricity</li><li style="text-align: left; line-height: 1.5;">The inverter converts this to AC, which gets used by home appliances during the daytime</li><li style="text-align: left; line-height: 1.5;">The surplus power generated by the panels, which otherwise gets fed to the grid, is used to charge the batteries</li><li style="text-align: left; line-height: 1.5;">Once the batteries are fully charged, the remaining solar energy is exported to the grid as usual</li><li>The stored energy in the battery gets utilised during the night time and thus ensuring minimal dependence on the grid</li></ul>&nbsp;&nbsp;<img src="https://image.cdn.ishopastro.com/eyJidWNrZXQiOiJwcm9kLW1lZGlhLW15c2hvcGFzdHJvLWNvbSIsImtleSI6IjU5NjA3MTg0NDA4MjI3MC9zdGF0aWMtcmVzLzE3NTBjOTE3ODg2ODM2NDA3OTMxODM0LnBuZyIsImVkaXRzIjp7InJlc2l6ZSI6eyJ3aWR0aCI6MTMyMCwiZml0IjoiY292ZXIifSwicm90YXRlIjpudWxsfX0=" alt="How ACE high voltage 100kwh home battery system works" class="fr-fic fr-dii"></div>

<div class="fr-view sa_b_component_richtext_unique">&nbsp;<table style="border-collapse: collapse; width: 100%; border-color: rgb(0, 0, 0); height: 1344px;" border="1" width="860"><tbody><tr style="background-color: rgb(0, 93, 188); height: 42px;"><td style="height: 42px; width: 352px;">Model number&nbsp;</td><td style="height: 42px; width: 127px;">RESS-BS-7.6-H0&nbsp;</td><td style="height: 42px; width: 127px;">RESS-BS-11.4-H0&nbsp;</td><td style="height: 42px; width: 127px;">RESS-BS-15.2-H0&nbsp;</td><td style="height: 42px; width: 127px;">RESS-BS-19-H0&nbsp;</td></tr><tr style="background-color: rgb(0, 93, 188); height: 21px;"><td style="width: 38.316%; height: 21px;">System</td><td style="width: 61.684%; height: 21px;" colspan="4">&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Battery System Energy (kWh)&nbsp;</td><td style="height: 42px; width: 15.421%;">7.6</td><td style="height: 42px; width: 15.421%;">11.4</td><td style="height: 42px; width: 15.421%;">15.2</td><td style="height: 42px; width: 15.421%;">19</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Usable Energy (kWh)[1]&nbsp;</td><td style="height: 42px; width: 15.421%;">7.2</td><td style="height: 42px; width: 15.421%;">10.8</td><td style="height: 42px; width: 15.421%;">14.4</td><td style="height: 42px; width: 15.421%;">18.1</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Number of Battery Modules&nbsp;</td><td style="height: 42px; width: 15.421%;">2</td><td style="height: 42px; width: 15.421%;">3</td><td style="height: 42px; width: 15.421%;">4</td><td style="height: 42px; width: 15.421%;">5</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Rated Battery Voltage (V)&nbsp;</td><td style="height: 42px; width: 15.421%;">204.8</td><td style="height: 42px; width: 15.421%;">307.2</td><td style="height: 42px; width: 15.421%;">409.6</td><td style="height: 42px; width: 15.421%;">512</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Operating Battery Voltage Range (V)&nbsp;</td><td style="height: 42px; width: 15.421%;">179.2~224&nbsp;</td><td style="height: 42px; width: 15.421%;">268.8~336&nbsp;</td><td style="height: 42px; width: 15.421%;">358.4~448&nbsp;</td><td style="height: 42px; width: 15.421%;">448~560&nbsp;</td></tr><tr style="height: 63px;"><td style="height: 63px; width: 38.316%;">Recommended Charging/Discharging Power (kW)&nbsp;</td><td style="height: 63px; width: 15.421%;">3.8</td><td style="height: 63px; width: 15.421%;">5.7</td><td style="height: 63px; width: 15.421%;">7.6</td><td style="height: 63px; width: 15.421%;">9.5</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Max. Output Power (kW)[2]&nbsp;</td><td style="height: 42px; width: 15.421%;">7.6</td><td style="height: 42px; width: 15.421%;">11.4</td><td style="height: 42px; width: 15.421%;">15.2</td><td style="height: 42px; width: 15.421%;">19</td></tr><tr style="height: 63px;"><td style="height: 63px; width: 38.316%;">Recommended Charging/Discharging Current(A)&nbsp;</td><td style="height: 63px; width: 15.421%;">18.5</td><td style="height: 63px; width: 15.421%;">18.5</td><td style="height: 63px; width: 15.421%;">18.5</td><td style="height: 63px; width: 15.421%;">18.5</td></tr><tr style="height: 63px;"><td style="height: 63px; width: 38.316%;">Max. Charging/Discharging Current(A)[2]</td><td style="height: 63px; width: 15.421%;">37</td><td style="height: 63px; width: 15.421%;">37</td><td style="height: 63px; width: 15.421%;">37</td><td style="height: 63px; width: 15.421%;">37</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">System Dimensions (W*H*D) (mm)</td><td style="height: 42px; width: 15.421%;">&nbsp;670*900*170&nbsp;</td><td style="height: 42px; width: 15.421%;">670*1215*170&nbsp;</td><td style="height: 42px; width: 15.421%;">670*1530*170&nbsp;</td><td style="height: 42px; width: 15.421%;">670*1845*170&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">System Net Weight (kg)[3]&nbsp;</td><td style="height: 42px; width: 15.421%;">91</td><td style="height: 42px; width: 15.421%;">129</td><td style="height: 42px; width: 15.421%;">167</td><td style="height: 42px; width: 15.421%;">205</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Communication</td><td style="height: 21px; width: 61.684%;" colspan="4">&nbsp;RJ45( RS485, CAN,Dry contact)&nbsp;</td></tr><tr style="height: 21px; background-color: rgb(0, 93, 188);"><td style="height: 21px; width: 38.316%;">Module&nbsp;</td><td style="height: 21px; width: 61.684%;" colspan="4">&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Battery Module Model Number&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">RESS-BM-10237-H0&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Battery Module Energy(kWh)&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">3.8</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Battery Module Usable Energy(kWh)&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">3.6</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Rated Battery Module Voltage(V)&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">102.4</td></tr><tr style="height: 63px;"><td style="height: 63px; width: 38.316%;">Battery Module Dimensions (W*H*D) (mm)&nbsp;</td><td style="height: 63px; width: 61.684%;" colspan="4">670*315*170&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Battery Module Net Weight (kg)&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">38</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Battery Control Box Model Number&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">RESS-BC-51237-H0&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Max. Working Voltage(V)&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">576</td></tr><tr style="height: 63px;"><td style="height: 63px; width: 38.316%;">Control Box Dimensions (W*H*D) (mm)&nbsp;</td><td style="height: 63px; width: 61.684%;" colspan="4">670*220*170&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Control box Net Weight (kg)&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">11</td></tr><tr style="background-color: rgb(0, 93, 188); height: 21px;"><td style="width: 38.316%; height: 21px;">Environment</td><td style="height: 21px;" colspan="4">&nbsp;</td></tr><tr style="height: 42px;"><td style="height: 42px; width: 38.316%;">Operating Temperature&nbsp;</td><td style="height: 42px; width: 61.684%;" colspan="4">Charge :-10&deg;C~50&deg;C Discharge:-10&deg;C~55&deg;C[4]&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Operating Humidity&nbsp;</td><td style="height: 21px; width: 61.684%;" colspan="4">0~95%RH, non-condensing&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Operating Altitude&nbsp;</td><td style="height: 21px; width: 61.684%;" colspan="4">&lt;=3000m&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Installation&nbsp;</td><td style="height: 21px; width: 61.684%;" colspan="4">Wall-mounted or Floor-mounted Ingress&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Protection Rating</td><td style="height: 21px; width: 61.684%;" colspan="4">&nbsp;IP66&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Warranty&nbsp;</td><td style="height: 21px; width: 61.684%;" colspan="4">10years&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Cycle Life&nbsp;</td><td style="height: 21px; width: 61.684%;" colspan="4">&gt;=7000 cycles[5]&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Scalability[6]</td><td style="height: 21px; width: 61.684%;" colspan="4">Max.30 Modules in parallel (113.6kWh)</td></tr><tr style="background-color: rgb(0, 93, 188); height: 21px;"><td style="width: 38.316%; height: 21px;">Certification&nbsp;</td><td style="height: 21px;" colspan="4">&nbsp;</td></tr><tr style="height: 21px;"><td style="height: 21px; width: 38.316%;">Certification&nbsp;</td><td style="height: 21px; width: 61.684%;" colspan="4">IEC62619/CE/UN38.3</td></tr></tbody></table>[1]Test Conditions - Temperature 25&deg;C, at the beginning of life, cell charge voltage between 2.8~3.5V, 0.5C. [2]Depends on the max. battery charge/discharge power of the inverter and BMS communication between inverter and battery system. [3]+/-3%, For accurate product weight please refer to actrual product packging label. [4]Charge derating occure between-10&deg;C~10&deg;C. Discharge derating occure between-10&deg;C~0&deg;C, 45&deg;C~55&deg;C. [5]25&deg;C ambient temperature, recommended charging/discharging current.&nbsp;</div>

The E20 home backup battery is a high voltage battery storage solution that utilizes LiFePO4 batteries to provide efficient and reliable energy storage. Designed to support residential properties, this 100 kWh home battery offers exceptional performance for large homes and energy-intensive applications. With its compact energy storage design, it ensures maximum energy storage capacity in a space-saving format, making it ideal for homes seeking both high capacity and efficient use of space.

RESS-E20-H0 | 7.6kWh-113.6kWh High Voltage Battery Storage
